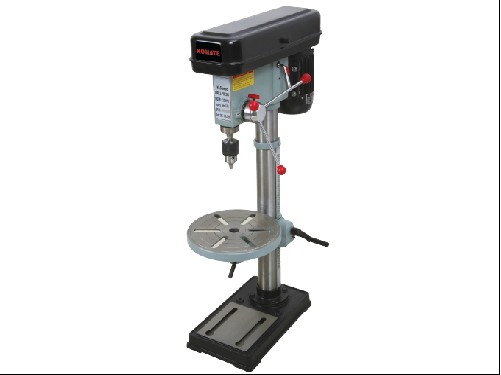

KP060001 | Input power:250W
No-load speed:50Hz/60Hz
515-2580/620-3100min-1
Chuck:13mm
Spindle stroke:50mm
Spindle taper:B16
Speed change:5
Swing:210mm
Table size:160*160mm
Base size:29 | |

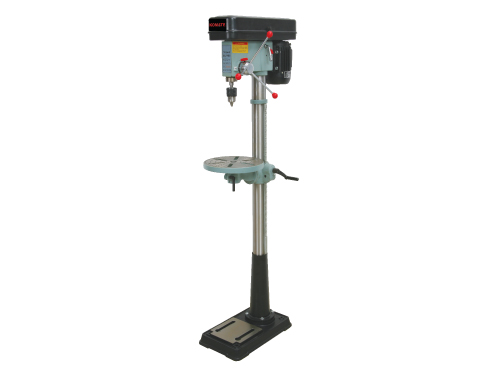

KP040401 | Input power:375W
No-load speed:50Hz/60Hz
170-3080/210-3700 min-1
Chuck:16mm
Spindle stroke:85mm
Spindle taper:MT2
Speed change:16
Swing:324mm
Table size:Φ290mm
Base size:420 | |

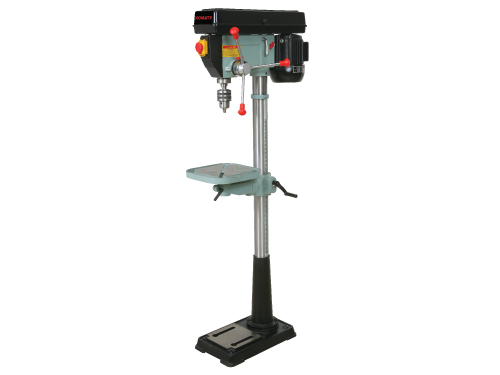

KP060003 | Input power:550W
No-load speed:50Hz/60Hz
170-3080/210-3700 min-1
Chuck:16mm
Spindle stroke:85mm
Spindle taper:MT2
Speed change:16
Swing:324mm
Table size:Φ290mm
Base size:460 | |

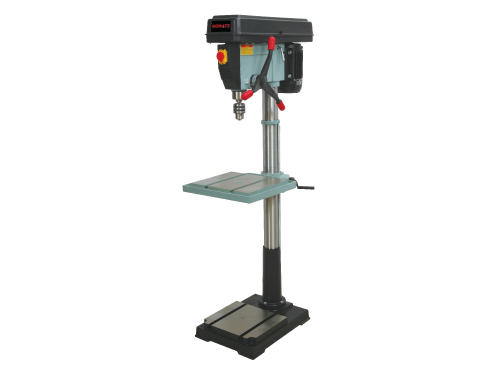

KP060004 | Input power:750W
No-load speed:50Hz/60Hz
270-2800/310-3300min-1
Chuck:20mm
Spindle stroke:85mm
Spindle taper:MT2
Speed change:12
Swing:360mm
Table size:Φ310mm
Base size:460* | |
KP060005 | Input power:1100W
No-load speed:50Hz/60Hz
150-2880/180-3400min-1
Chuck:20mm
Spindle stroke:120mm
Spindle taper:MT4
Speed change:12
Swing:510mm
Table size:470*420mm
Column:Φ9 | |
|
|
Drill Press
